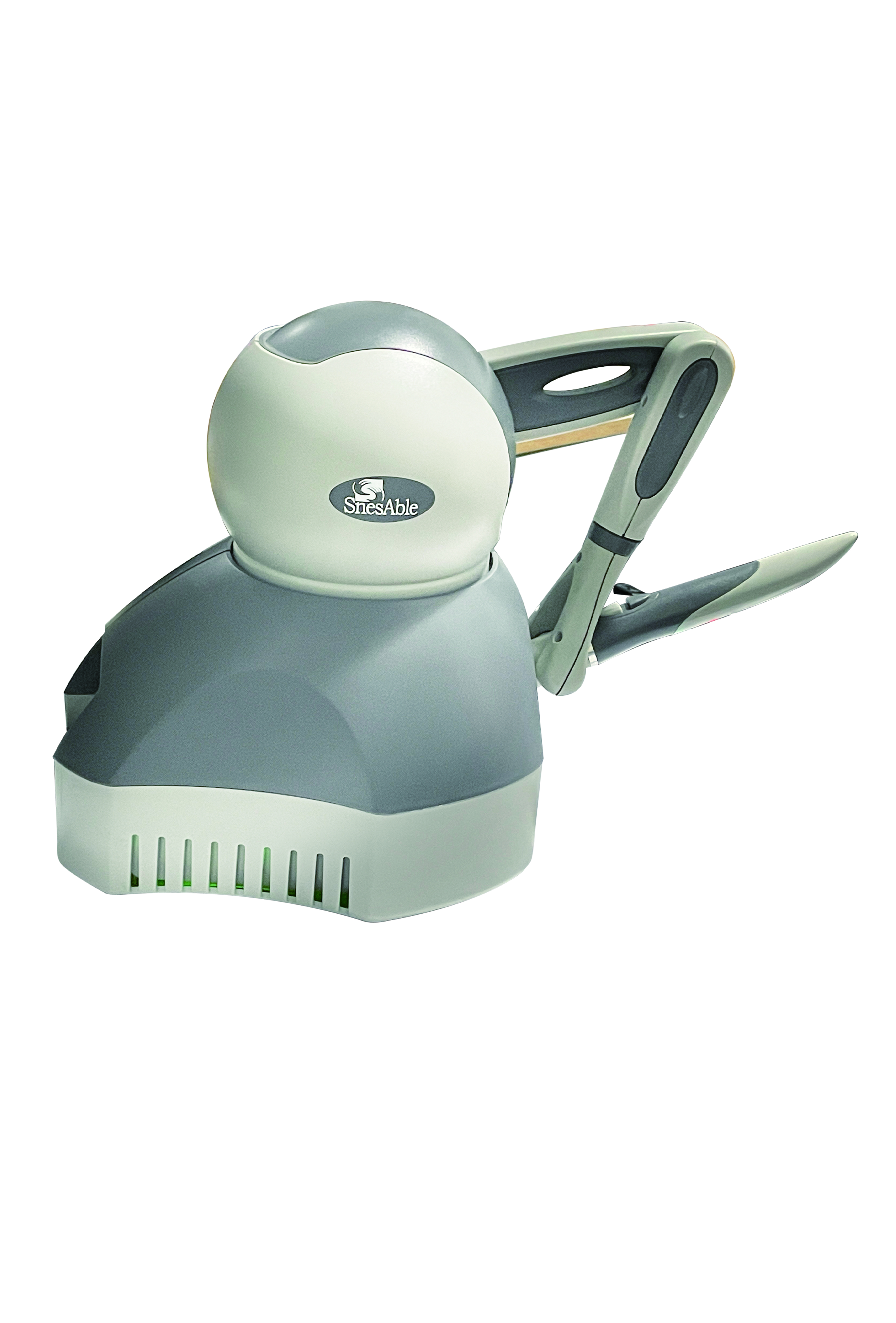

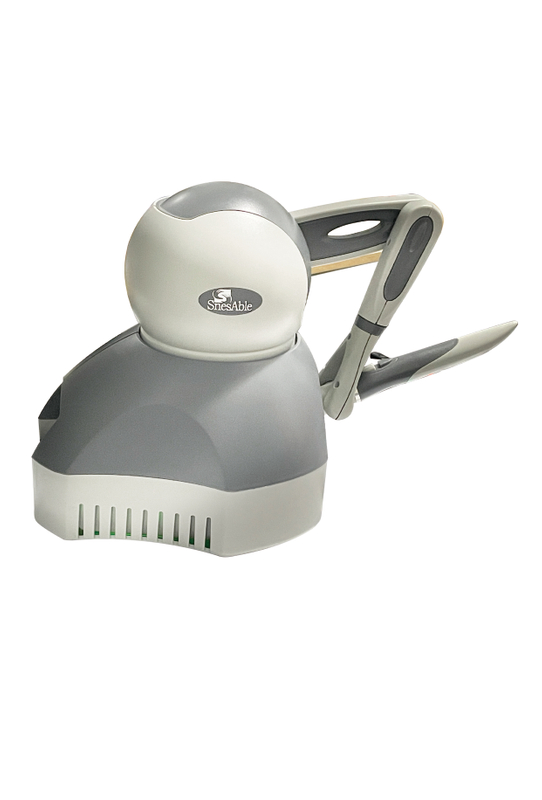

Tactile Carving Pen

·Footprint (width x depth): ~168Wx203mm

·Weight (device only): ~1.42KG

·Range of motion: hand movement of rotating wrist

vNominal position resolution: >450dpi

·Rear drive friction: <0.26N

·Maximum output force at nominal position: 3.3N

·Inertia (apparent mass of tip): ~45G

·Servo loop speed: 1KHZ

·Feedback direction: X, Y, Z

·Position sensing: X, Y, Z

·Stylus universal joint: flip up and down, shake left and right, lateral movement (±5% linear potential)

·Power: 110V-240V

·Interface: USB2.0/3.0 interface
