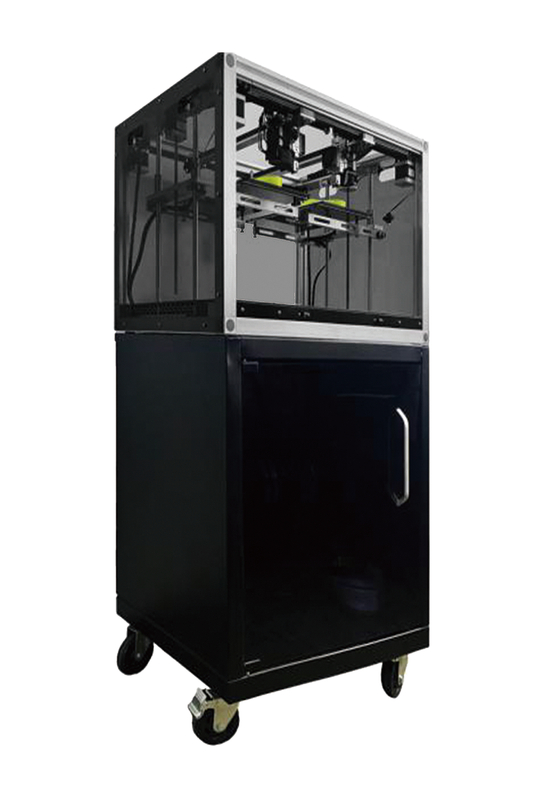

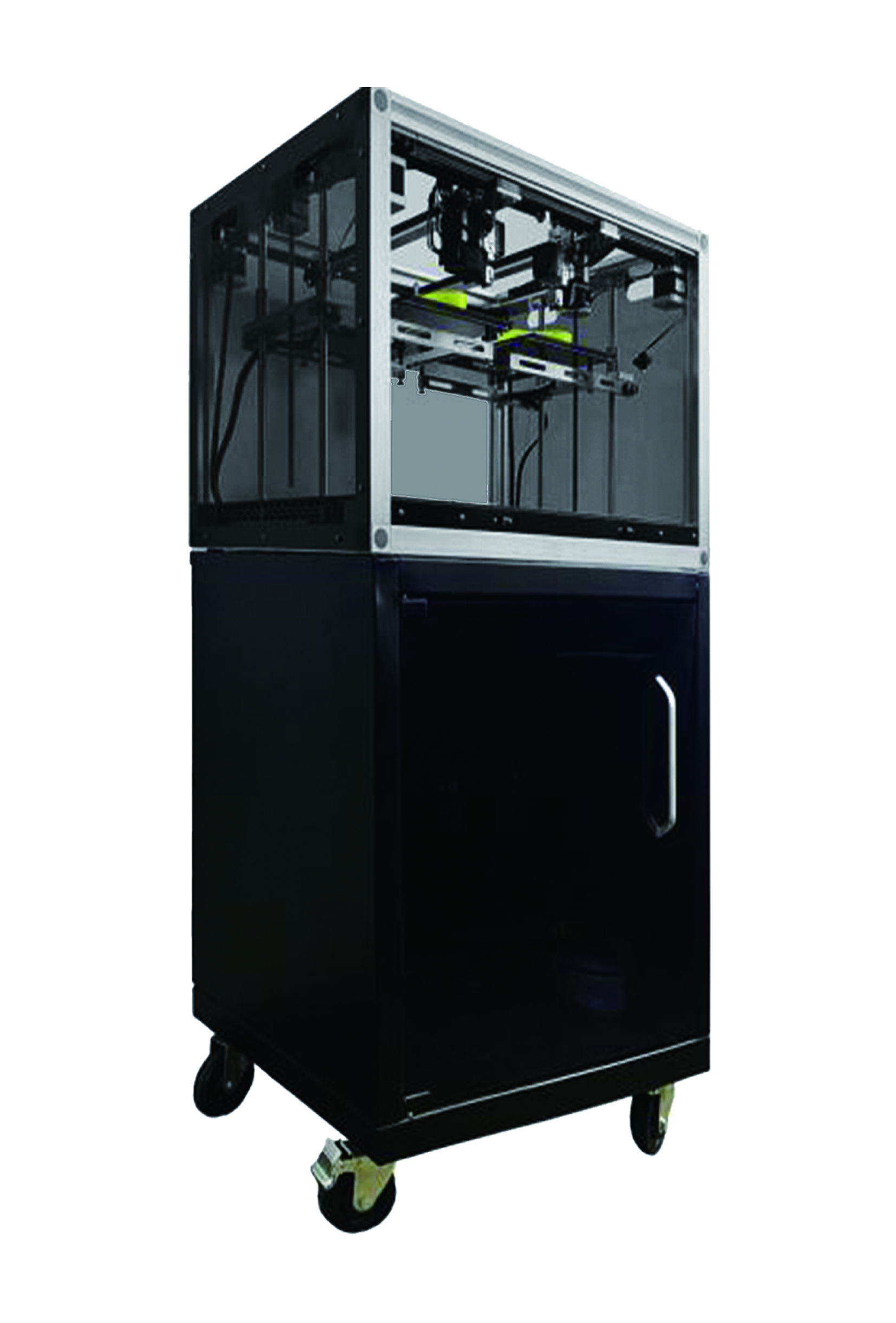

High Speed 3D Printing System

· Molding principle: melt drawing

· Nozzle specifications: 0.4/0.6/0.8/1mm

· Number of materials: 1 type/1-2 types

· Positioning accuracy (X, Y, Z): 0.1lmm/0.11mm/0.025mm

· Melt drawing temperature: 175-260℃

· Support materials: TPU, TPE, PLA, ABS, etc.

· Leveling method: automatic leveling (manual)

· Melt temperature control: air cooling, thermistor temperature control

· Hot bed temperature: 0-100℃

· Appearance size: 550*750*1282mm/760*800*1540mm

· Forming size (single platform): 200*320*200mm/600*600*300mm

·Input voltage: AC100-220V50/60HZ

·Output power: 700W/800W

·Material specification: 1.75 (±0.08) mm

·Slicing software: BasingLead.3D

·Feeding method: short-range continuous feeding

·Forming speed: 27-45min/pair (reference to the average size 40 insole)

·Printing speed: 0-120mm/s

·Vertical weight of the whole machine: 54KG/60KG

·Data socket: with USB anti-collision design
