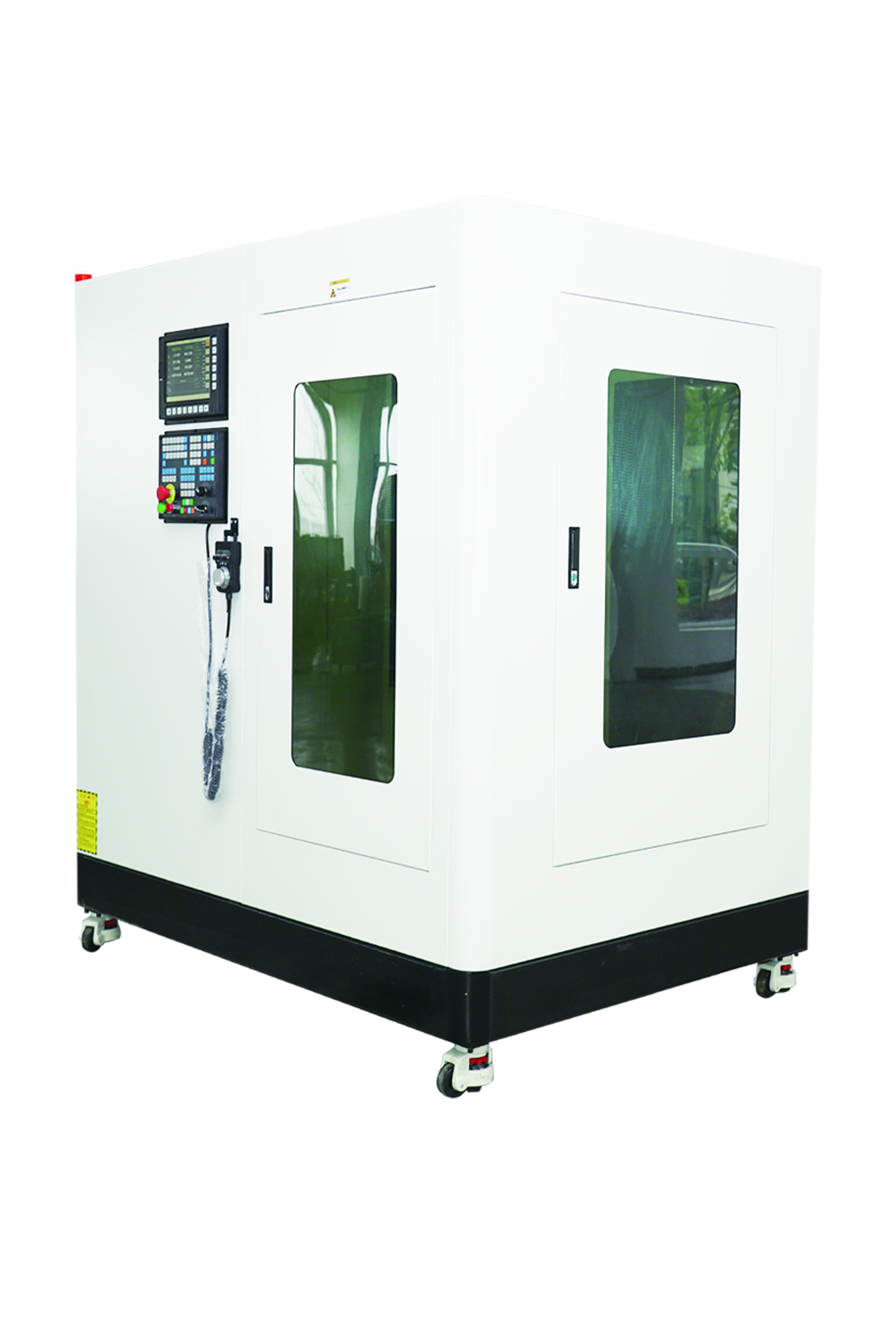

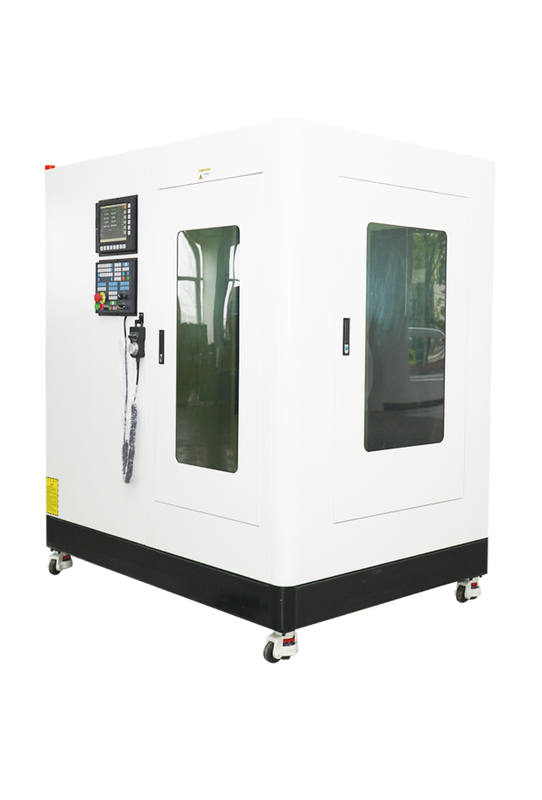

Four Axis Engraving Machine

·X, Y, Z axis travel: 800*600*300 (mm)

·Z axis: reinforced head steel plate

·A, Z, Y axis transmission: Taiwan TBI high-precision ball screw

·Z, X, Y axis guide rail: imported straight 25 line square guide rail

·Spindle power: 6000W high-speed air-cooled spindle

·Spindle clamp: adjustable spindle clamp

·Spindle speed: 0-18000r/min

·Idle speed: 15000mm/min

·Processing speed: 0-12000mm/min

·Repeat positioning accuracy: 0.02mm/300mm

·Inverter: 7.5KW inverter

·XY axis drive: servo drive

·XY Axis motor: servo motor

· Z-axis drive motor: servo drive motor

· Operation speed: 12000mm/min

· Engraving instructions: G code, ENG, NC, etc.

· Tool diameter movement mode: 3.175/4/6/12.7 gantry movement

· Machine weight: 800KG

· Power supply: 220/380V

· Machine size: 1800*1210*2200mm
