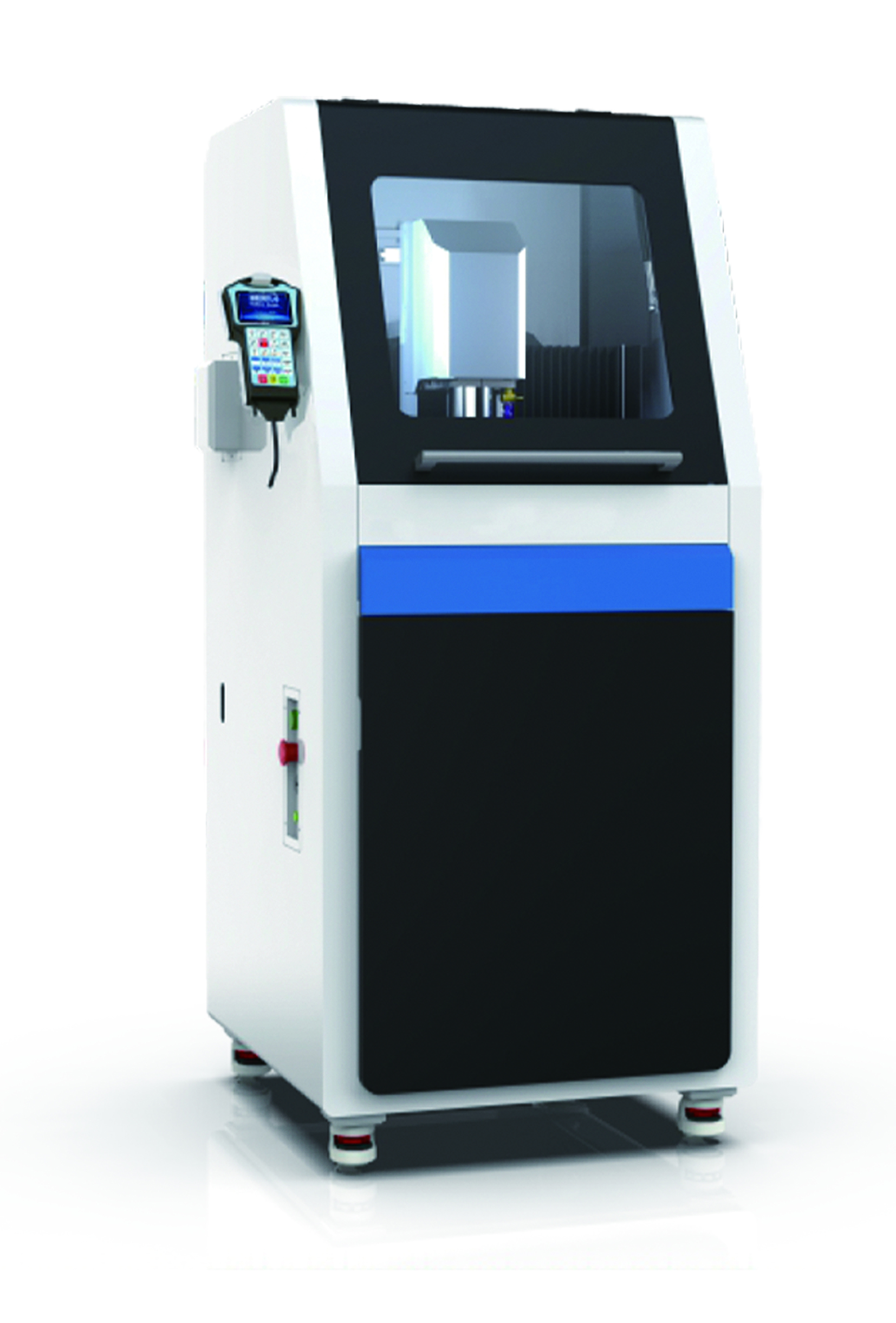

CNC Engraving Machine

·X/Y/Z travel: 400*300*120mm

·Embossed processing size: 400*300*100mm

·Three-dimensional processing size: not supported

·Appearance size: 710*740*1640mm

·Weight: 280KG

·Material: integral cast iron, square steel bracket

·Engraving and clamping method: top pressing, clamping, Liao sticking

·Engraving precision: ±0.01mm

·Spindle speed: 0-24000rpm/min

·Processing speed: 0-3000mm/min

·Spindle power: 1500W water-cooled variable frequency spindle

·Drive mode: Reisai drive motor

·Clampable tool shank diameter: 2.3-6mm

·Voltage: AC220V/50-60Hz

·Maximum power: 3KW
